HELIOS-12

12.1" widescreen TFT display, sunlight readable, 1280 × 800 pixels

  • 1280 × 800 Pixel
  • 1000 cd/m², sunlight readable
  • DVI – HDMI – VGA
  • 10-Point-Touch, optically bonded
  • Buttons can be used as USB HMI
  • USB speaker and Microphone
  • 3-Port USB-Hub
  • Safety housing made of Aluminum

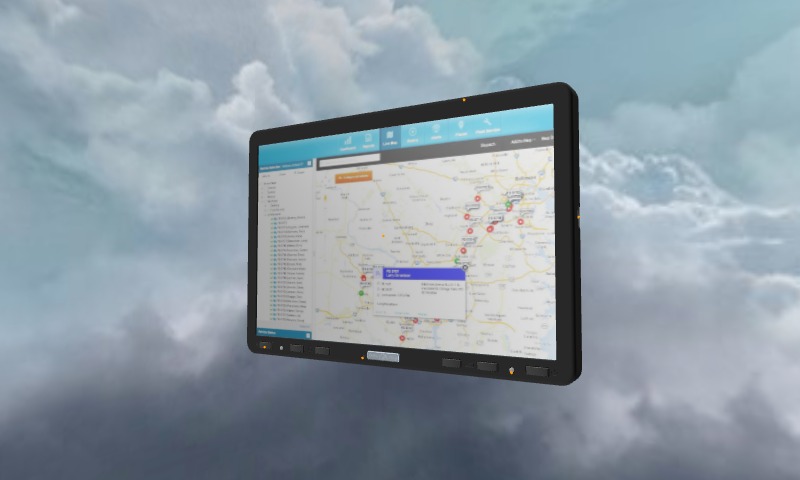

Bright, brilliant colors, high resolution. With the HELIOS-12 display, you can display your demanding picture content in fascinating quality. Even under difficult conditions, you can read the picture relaxed thanks to the anti-reflective coating and the bright, controlled backlighting.

Block Diagram

Underline events acoustically with the integrated loudspeakers and speak notes into the microphone - the codec connected via USB makes it possible.

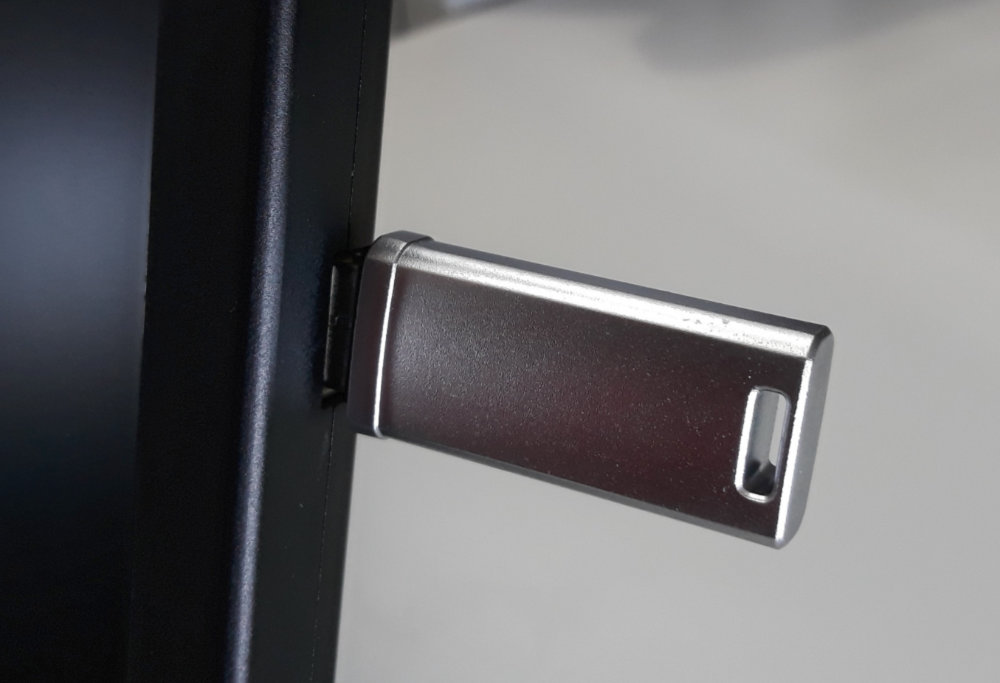

Plug in a keyboard and a USB stick for configuration ad hoc - easy thanks to the integrated USB hub. Use the integrated buttons as a USB HMI device to trigger actions in your application.

Technical Specifications

General Robust, high-resolution TFT display, USB, sound, buttons and touch
Display 12,1" (261 × 163) mm², 16:10
1280 × 800 pixel
Viewing angle: 89°/89°/89°/89°, contrast 1:1000
1000 cd/m² (Option: 500 cd/m²), light sensor

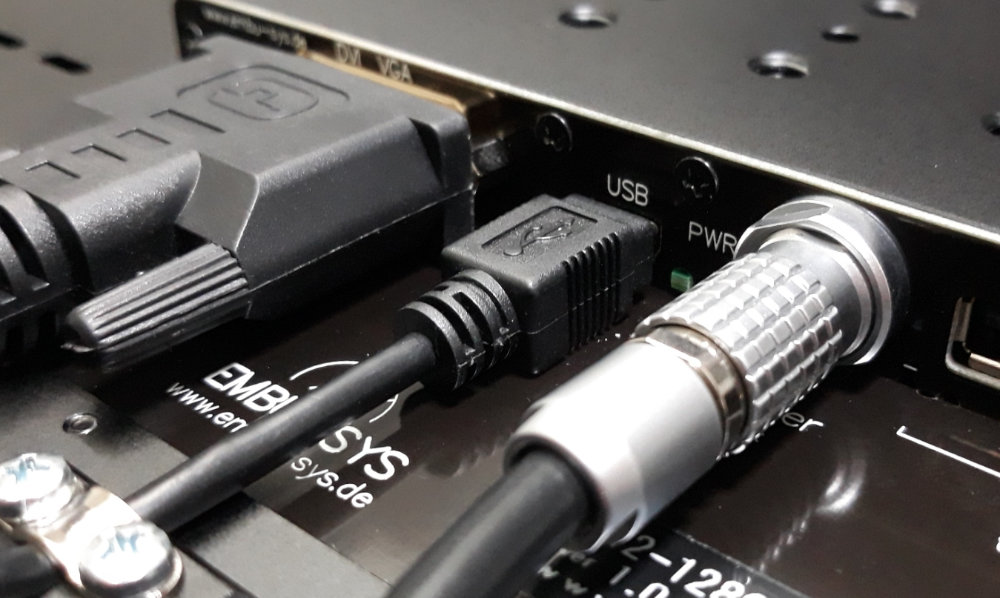

Interfaces
1 × VGA DVI connector
*1)
*2)
1 × DVI, HDMI, DisplayPort
1 × USB 2.0 Device USB Mini-B
2 × USB 2.0 Host at rear side USB-A
1 × USB 2.0 Host at right side USB-A
1 × Supply Lemo ECG.1B.302.CLL or compatible
Audio 2 × Loudspeaker on the back, controlled via USB CODEC
Microphone on device front, controlled via USB CODEC

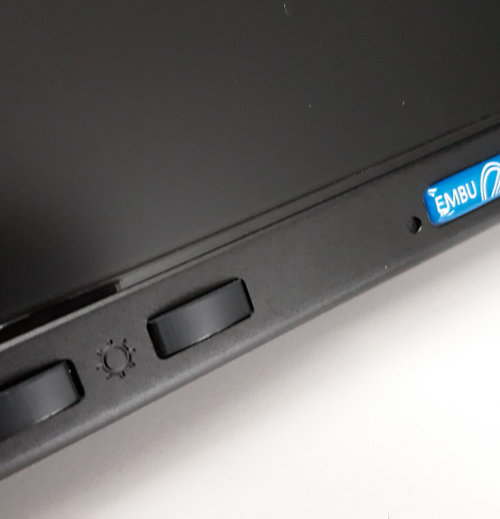

Buttons 6 × tactile buttons on the front
Keys are recognized as Windows® HID, programmable assignment
Supply 6...36 V via supply connector
ca. 18 W / <tbc> W (1000/500 cd/m², full backlight, w/o audio output)
Automatic switch on / off synchronous to the PC
Touch Capacitive touch, optically bonded, 10-point multi-touch, optional
Temperature -20...+70 °C storage, -20...70 °C operating

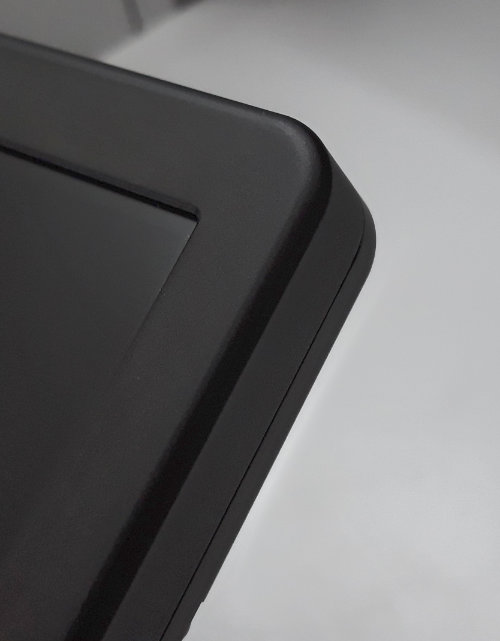

Housing Milled aluminum, sandblasted, black anodized
W×H×D: (290 × 199 × (29+10)) mm³
Mass approx. 1100 g in the base configuration, 1390 g with touch
<tbc> = to be clarified   *1) Common DVI socket for VGA and DVI   *2) Operable via adapter or cable to HDMI and DisplayPort

Variants

Brightness Touch Power
M12-1280   500 cd/m² – ECG.1B.302.CLL
M12-1280-T   500 cd/m² ✔ ECG.1B.302.CLL
M12-1280H 1000 cd/m² – ECG.1B.302.CLL
M12-1280H-T 1000 cd/m² ✔ ECG.1B.302.CLL
